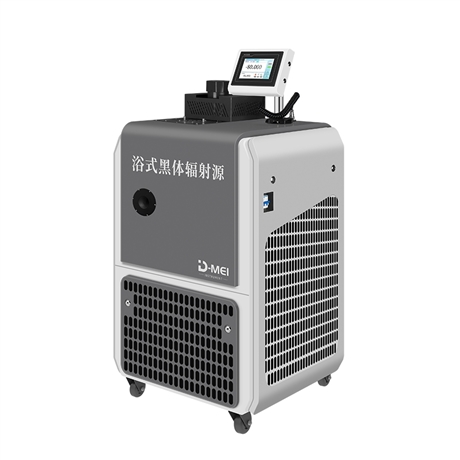

Low temperature bath blackbody radiation source
Category:
Instrumentation/Standard measuring instruments/Thermal metrology standards
Model:
DY-HT1-Y
Brand:
Tai'an Demei
Model Name:
DY-HT1-Y
Operating temperature:
-50℃~100℃/-80℃~100℃
Operation method:
touch screen operation
Temperature Resolution:
0.001℃
Mouth diameter:
φ50mm
Depth of the oral cavity:
280mm (customizable)
Cavity emissivity:
≥ 0.995 (emissivity adjustable from 0.8-1, optional function)
Temperature stability:
Not greater than ± 0.05 ℃ (for constant temperature equipment)
temperature uniformity:
Not exceeding 0.15 ℃
Equipment capacity:
18L
working medium:
At low temperatures: anhydrous ethanol; At high temperatures (above 30 ℃): Special coolant or special oil can be selected
power supply:
220V 50/60HZ
Wire diameter:
2.5 square meters
Power socket matching:
16A
ambient temperature:
23±5℃ 15-80%RH
Remarks:
Any language interface can be accessed, and other special requirements can be customized according to user needs
Communication (optional):
RS485 communication interface
Retail Price
9.90USD
重量
kg
- Product Description
-
Model Name DY-HT1-Y
Operating temperature -50℃~100℃/-80℃~100℃
Operation method touch screen operation
Temperature Resolution 0.001℃
Mouth diameter φ50mm
Depth of the oral cavity 280mm (customizable)
Cavity emissivity ≥ 0.995 (emissivity adjustable from 0.8-1, optional function)
Temperature stability Not greater than ± 0.05 ℃ (for constant temperature equipment)
temperature uniformity Not exceeding 0.15 ℃
Equipment capacity 18L
working medium At low temperatures: anhydrous ethanol; At high temperatures (above 30 ℃): Special coolant or special oil can be selected
power supply 220V 50/60HZ
Wire diameter 2.5 square meters
Power socket matching 16A
ambient temperature 23±5℃ 15-80%RH
Remarks Any language interface can be accessed, and other special requirements can be customized according to user needs
Communication (optional) RS485 communication interface
Description :
[Product Introduction]

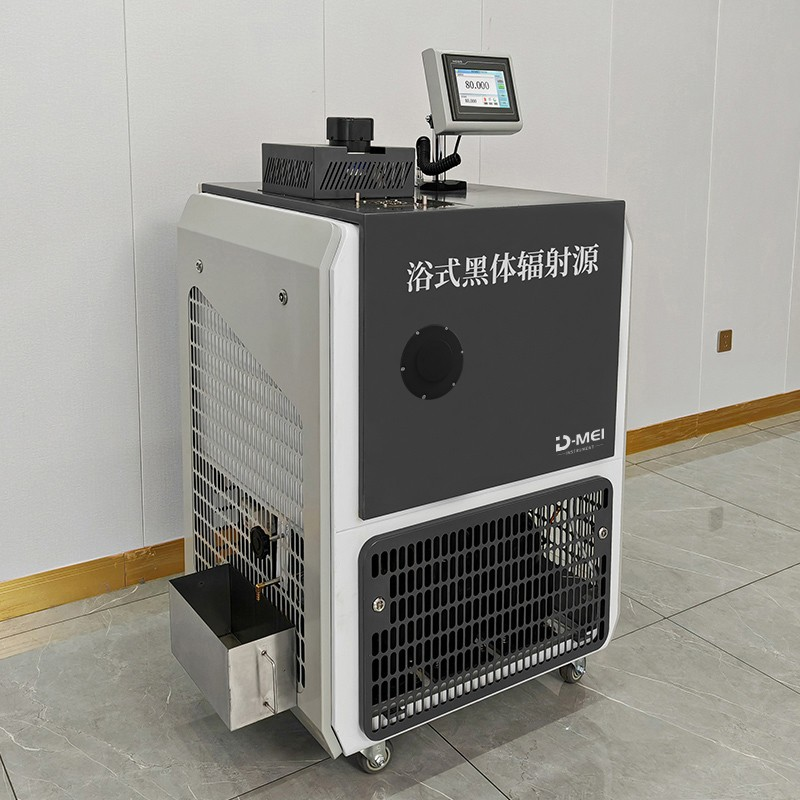

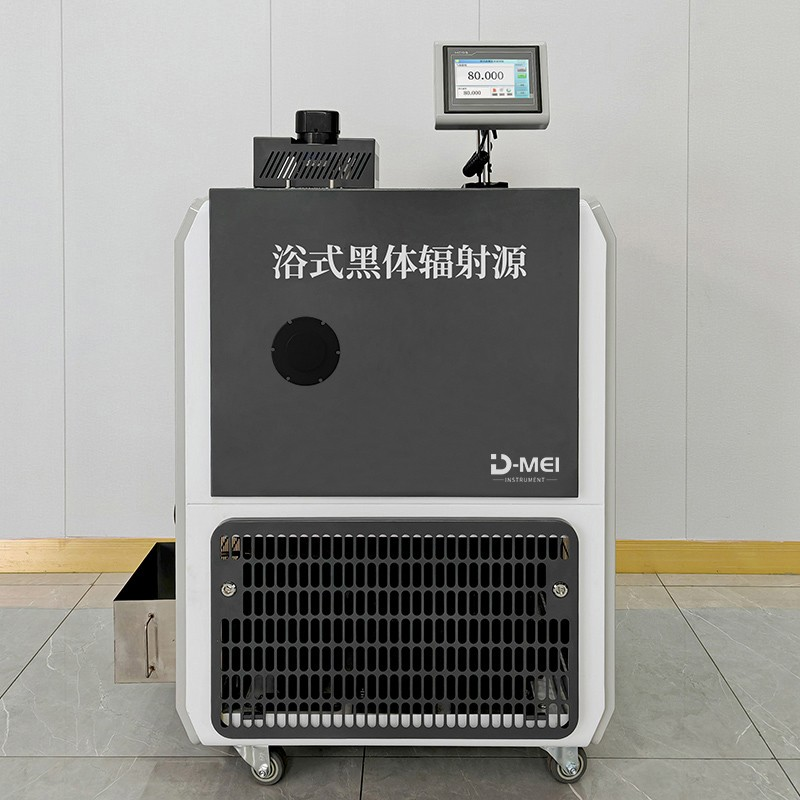

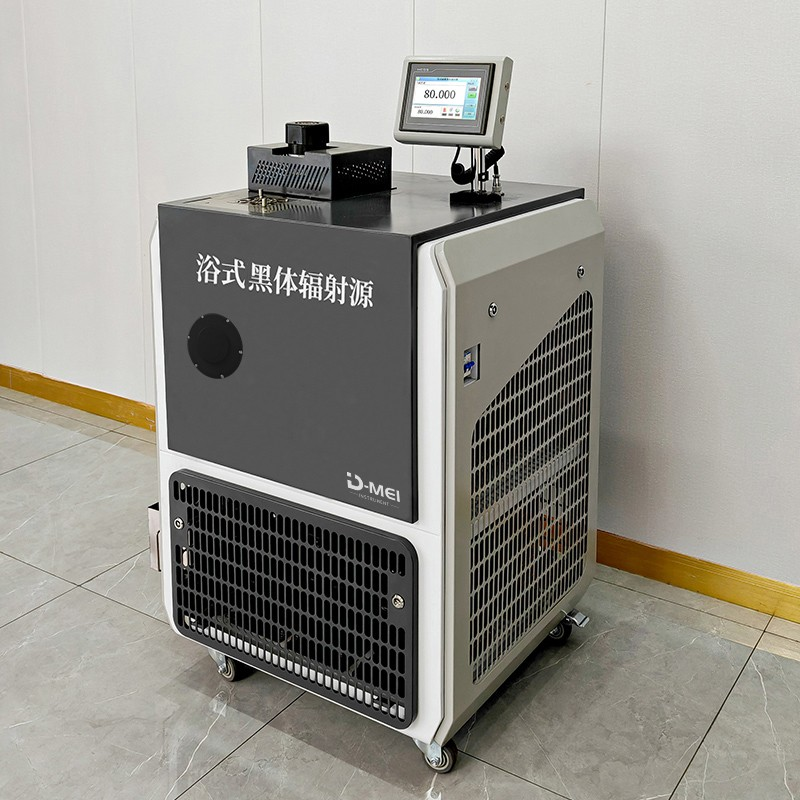

DY-HT1-Y Low Temperature Bath Reference Blackbody Radiation Source | Blackbody Furnace (-50 ℃ -100 ℃/-80 ℃ -100 ℃) is an infrared temperature calibration device independently developed and produced by Tai'an Demei Electromechanical Equipment Co., Ltd. The bath reference radiation source for radiation temperature measurement is mainly used for the calibration of radiation thermometers, infrared thermographs, and other brightness temperature measurement devices. It is an essential standard device for accurate traceability of brightness temperature. A blackbody radiation source is used for verifying or calibrating radiation thermometers, concave devices with stable temperature control and clear emissivity, and thermal radiation characteristics close to blackbody.
A blackbody radiation source with the required brightness, temperature, and other metrological properties for verifying or calibrating a radiation thermometer, heated in a liquid bath.
Bath type blackbody furnace can comply with regulations and specifications:
JJG856-2015 Verification Regulations for Working Radiation Thermometers
JJG (Military) -50-300 ℃ Radiation Temperature Measurement Bath Reference Blackbody Radiation Temperature Source
JJF1187-2008 Calibration specifications for thermal imagers
Its product features:
Specially designed for calibrating infrared thermometers of various sizes.
The temperature uniformity of the calibration plane is good.
★ Imported intelligent temperature controller is selected, with high temperature control accuracy.
Compared with similar products at home and abroad, it has good performance, excellent price, and high cost-effectiveness.
★ The temperature control adopts advanced PID control technology, which has high accuracy and good stability
★ Equipped with multi-point temperature correction function
This equipment complies with JJG 856-2015 Radiation Temperature Verification Regulations for Work Use
★ The diameter of the cavity is large, and the temperature on the target surface is stable and uniform, which can meet the calibration work of measuring units for daily/industrial infrared radiation thermometers
