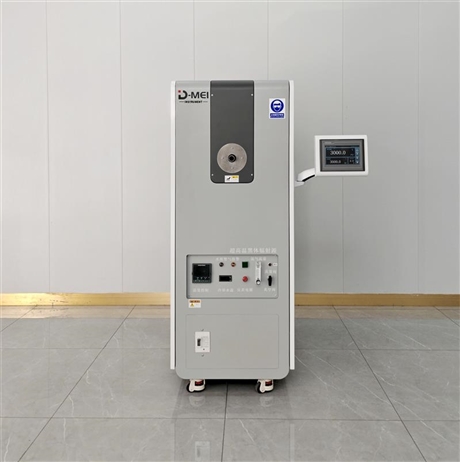

Ultra high temperature blackbody radiation source

Description :

[Product Overview]

The definition of a blackbody is an object that can absorb all external radiation energy while emitting all of its own energy.

The main technical indicators of a blackbody include its emissivity, blackbody cavity diameter, temperature uniformity, and radiation temperature uncertainty. Therefore, in order to ensure the product quality of blackbody, blackbody is usually designed in sections according to temperature. The blackbody we usually refer to is an artificial blackbody. The emissivity of an artificial blackbody is close to 1, but not equal to 1.

The main function of a blackbody is to generate standard radiation at a certain temperature. Therefore, it is mainly used in temperature measurement to calibrate various radiation thermometers, such as optical pyrometers, infrared thermometers, infrared thermal imagers, etc.

[Scope of Application]

      Blackbody is mainly used in the field of temperature measurement in industry, with the main product being the blackbody furnace. The calibration and verification of radiation thermometers usually use the comparative method, which compares the temperature reproduced by the standard instrument with the temperature reproduced by the verified radiation thermometer through a highly stable radiation source (usually a blackbody radiation source) and other supporting equipment, in order to determine whether it is qualified or provide calibration results.

As a standard radiation source, standard blackbody is mainly used for calibrating radiation thermometers, infrared thermometers, and radiation temperature sensing detectors. Our company currently has advanced blackbody technology and a wide range of blackbody products with a wide temperature range. The product has a small volume, light weight, and is easy to carry. It is not only suitable for calibrating radiation thermometers in various levels of metrology institutions and laboratories, but also for on-site calibration.

[Product Features]

1. Accuracy: 0.25% ± 1 ° C of reading

2. Remote set point control can be additionally selected through RS 232/RS485

3. Rigorous manufacturing and testing to meet strict safety and quality standards

4. National measurement unit traceability certificate can be provided according to user needs

5. Adopting automatic temperature control method, safe and reliable, fast heating speed, and good temperature stability

6. Stability: Adjust the stable temperature value required to set the blackbody at high temperatures

7. Convenience: 1. One person can operate and move, equipped with industrial universal wheels

            2. The power requirements are simple and energy-saving

[Additional Features]

1) Operation method: Intelligent touch screen with built-in multi-point independent temperature correction function.

2) Temperature control: high-precision PID automatic control, including MH logic intelligent adjustment function and advanced control algorithm with parameter self-tuning function.

3) The target surface adopts imported high radiation coating.

4) Cooling method: Hollow electrode and power transformer casing are water-cooled.

5) Adopting an open design, there is no need to consider measurement errors introduced by windows, while avoiding excessive brightness temperature differences caused by pollution during the use of traditional high-temperature blackbody furnaces with windows.

6) Using heating tube variable cross-section heat compensation technology, the axial temperature gradient is small and the effective emissivity is high;

10) The high-temperature blackbody furnace fully adopts the unique low voltage and high current design to ensure the safety of equipment, personnel, and laboratory use;

11) Using high-temperature heating materials and modular assembly technology, it has a long service life and low maintenance costs.

12) The use of graphite tubes can effectively reduce the temperature gradient of the blackbody cavity wall, achieve good conductivity and insulation effects between other graphite components and electrodes, and ensure the reliable installation of graphite components.

13) Quartz glass tubes can be sealed with protective gas argon to ensure that graphite components are not oxidized at high temperatures; When the graphite tube expands at high temperature, relying on the elasticity adjustment of the spring itself can ensure good conductive contact between the graphite tube and the electrode.

14) Implement remote set point programming through standard communication interfaces. The equipment is equipped with protective devices to facilitate the operation of personnel and ensure safety during operation.

15) Language: default Chinese or English, and can copy language interfaces from anywhere in the world according to the purchaser's requirements.
