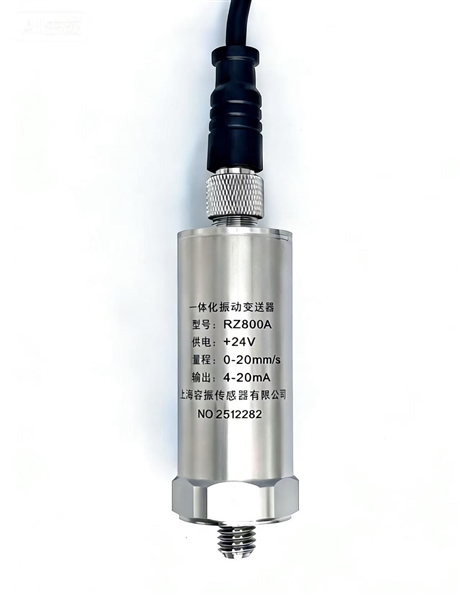

Integrated vibration sensor and vibration transmitter

Description :

Instructions for using the integrated vibration transmitter

RZ800

1． Introduction

1. The integrated vibration transmitter integrates vibration sensors and precision measurement circuits together to form a high-precision vibration measurement system, suitable for vibration measurement of 600-60000 rpm (10-1000Hz) machines. The transmitter can be directly connected to DCS, PLC or other equipment and is an ideal choice for measuring the vibration of factory equipment such as fans, motors, water pumps, air compressors, etc

2. Technical parameters

2．1   Frequency response: 10-1000 Hz

2．2   Measurement range: 0-20mm/s

2．3   Signal output: 4-20mA;

2．4   Output impedance: ≤ 500 Ω

2．5   Working voltage: DC24V ± 10%

2. 6   Wiring method: two-wire system

2.7 Measurement direction: see label

2．8   Usage environment: Warm; Degree  -40℃～85℃   Relative humidity ≤ 90%

2.9 Dimensions: φ 28 * 69mm

2.10 Installation method: M10 * 1.5

2.11 weight;   Quantity: Approximately 180g

3 amps  pretend

3.1 Installation position: Install on the tested vibration point, fix the bottom of the transmitter on the tested housing, and then tighten the transmitter on top.

3．2 Wiring instructions:

A+Red Terminal:+24V

B-Blue terminal: 4-20mA

Yellow terminal connected to ground
