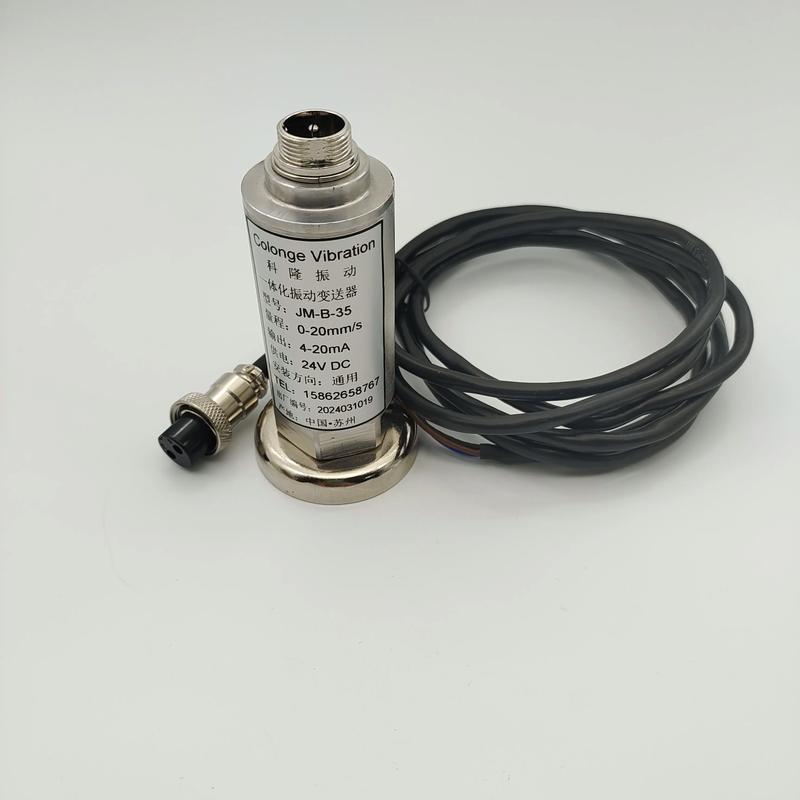

Industrial grade integrated vibration transmitter 4-20mA output for real-time monitoring of equipment status

Description :

  Integrated vibration transmitter is an industrial monitoring instrument that integrates vibration sensors and signal processing circuits, mainly used for real-time monitoring of the vibration status of rotating machinery such as fans, water pumps, compressors, etc. It is directly installed on the equipment bearing seat or housing, and can accurately capture the vibration speed, acceleration or displacement signals of the equipment, and convert them into standard 4-20mA current signals or RS485 digital signal outputs. This design solves the problems of complex wiring and susceptibility to interference in traditional split installation, and is particularly suitable for long-term stable operation in harsh industrial environments, helping factories achieve predictive maintenance and avoid unplanned shutdowns.

  This integrated vibration transmitter usually adopts a stainless steel 304 or 316L housing, with a protection level of IP65 or above, ensuring normal operation in humid and dusty environments. The core sensing components are mostly piezoelectric accelerometers, with a frequency response range typically between 2Hz-1000Hz. The measurement range can be selected according to requirements, such as 0-20mm/s or 0-50mm/s. The working voltage is generally 24V DC, transmitted in a two-wire system, and meets international vibration testing standards such as IEC 61373. Some high-end models also have built-in temperature sensors that can simultaneously monitor bearing temperature and provide multi-dimensional equipment health data, meeting the requirements of ISO 10816 vibration evaluation standards.

  When selecting, the specific specifications should be determined based on the speed, installation space, and signal transmission distance of the tested equipment. For low-speed large equipment, it is recommended to choose models that focus on displacement or low-frequency response; For high-speed motors or gearboxes, an acceleration type integrated vibration transmitter with good high-frequency response should be selected. If there is strong electromagnetic interference on site, priority should be given to products with shielded cable interfaces and good EMC compatibility. Unlike portable vibration meters, integrated vibration transmitters are suitable for fixed installation and online monitoring, and cannot move to measure multiple points. However, they can provide continuous historical data trends, making them more suitable for long-term health management of critical equipment.

  When installing an integrated vibration transmitter, it is necessary to ensure that the sensor base and the measured surface are flat and clean. It is recommended to use steel bolts for rigid connection and avoid using magnetic seats or adhesives to avoid affecting the accuracy of high-frequency signal acquisition. In daily maintenance, it is necessary to regularly check whether the cable joints are loose or corroded, to ensure that the seal is intact and prevent water vapor from entering. Common faults include zero signal output or large fluctuations, usually caused by open wiring, abnormal power supply, or damage to internal components of sensors. A preliminary judgment can be made by measuring the circuit current with a multimeter. Regularly comparing historical data baselines can help detect early signs of equipment imbalance, misalignment, or bearing wear in a timely manner.
