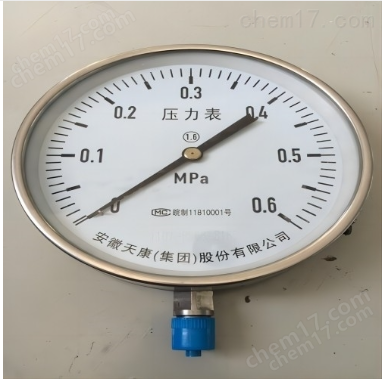

bellows pressure gauge
Category:
Instrumentation/Pressure instrument/Pressure gauge
Model:
YE
Brand:
Tianyi brand
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
Description :
1. The whole machine consists of four parts
Measurement system (threaded joint+corrugated film box) → transmission amplification mechanism (lever+gear) → pointer dial → metal shell+glass, with built-in dial and external zero adjustment screw.
2. Working principle
The measured gas pressure is introduced into the joint, and the pressure pushes the corrugated membrane box to produce axial elastic displacement. The displacement is mechanically amplified by the lever gear, which drives the pointer to display the pressure value intuitively on the dial; When under negative pressure, the membrane box shrinks inward and the pointer points to the negative pressure area.
AfterSalesService :
质保期：壹年Key words:
