Electromagnetic Flowmeter
Category:
Instrumentation/Flow meter/flowmeter
Model:
TK1200
Brand:
Tianyi brand
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
Description :
1. Integrated (commonly used)
The header and sensor flange are integrated into one, with on-site LCD digital display. It is easy to install and has less wiring. It is preferred for DN10~DN300 conventional working conditions.
2. Split type
Converter wall/panel installation, sensor pipeline installation, suitable for high temperature, humidity, strong vibration, underground, explosion-proof environments, signal line standard 10 meters (can be extended and customized).

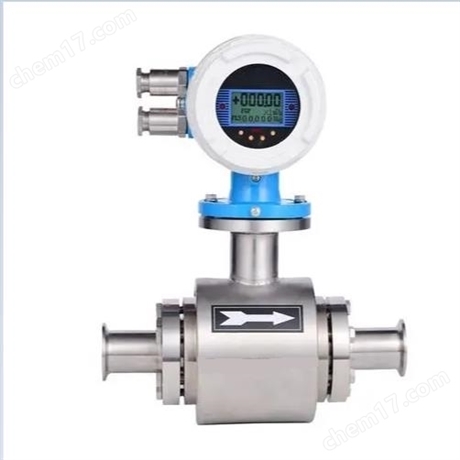

3. Sanitary type (food/pharmaceutical specific)
Clamp quick installation structure, 316L machine, food grade lining, easy disassembly and cleaning, dedicated for milk, juice, medicine, and brewing pipelines.
4. Plug in large caliber
Installation of DN300~DN3000 ultra large pipelines without breaking, pressure insertion and maintenance, low-cost selection for municipal water supply and drainage, large-scale water conservancy, and circulating water.
5. Explosion proof Exd Ⅱ BT6
Chemical flammable and explosive plant areas, hazardous chemical workshops, explosion-proof enclosures, intrinsic safety circuits, and supporting facilities for petrochemical chlor alkali projects.
4、 Core technical parameters
1. Caliber range: DN10~DN3000mm (minimum order for small caliber DN2.5, customized for large caliber)
2. Accuracy level: Standard 1.0 level; High precision level 0.5; Special customization at level 0.2
3. Flow velocity range: 0.3-15m/s, recommended commonly 0.5-3m/s; Range ratio 1:20~1:150 (wide range)
4. Medium temperature
Rubber lining: -20 to+80 ℃
F4/PTFE PTFE lining: -30~+120 ℃ (customized for high temperature up to 180 ℃)
5. Nominal pressure: 1.0MPa, 1.6MPa, 4.0MPa, 10MPa, 16MPa High pressure customization
6. Protection level: IP65 for the main body, IP68 for submersible type; Explosion proof Ex Ⅱ BT6 Gb
7. Output signal: standard 4-20mA; optional RS485 Modbus, HART, pulse (cumulative), compatible with DCS/PLC central control system
8. Power supply: 220VAC conventional; 24VDC DC (explosion-proof/automatic control system)
AfterSalesService :
