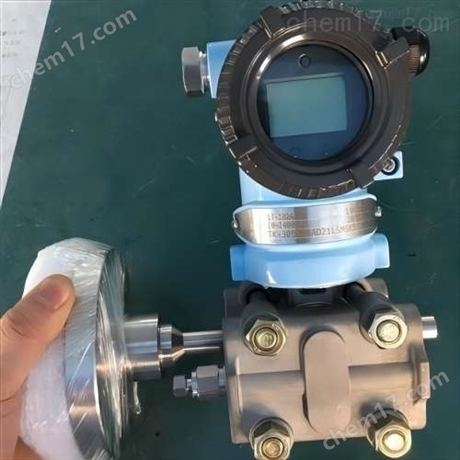

Flange mounted differential pressure transmitter
Category:
Instrumentation/Pressure instrument/Differential pressure gauge
Model:
TK3501C
Brand:
Tianyi brand
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
Description :
1. Single flange TK3051LT (single diaphragm remote transmission)
Single flange+short capillary tube, installation of flange on the side/bottom of the tank body, open tank, atmospheric storage tank, viscous mud, sewage, viscous material liquid level; Flange specifications DN50/DN80, with optional protruding/PTFE lined flanges.
2. Double flange TK3051DP remote transmission (double diaphragm capillary tube)
Two upper and lower flanges+long and short capillary tubes, closed pressure vessels, reaction vessels, pressurized storage tanks, high and low temperature crystallization media, measuring liquid level, oil-water interface, and differential pressure inside the tank. The capillary tube length is customized according to needs, ranging from 0.5m to 8m.
3. Segmented configuration options
1. Ordinary analog N: pure two-wire 4-20mA output, cost-effective standard configuration;
2. Intelligent HART type S: 4~20mA+HART protocol, remote range adjustment, migration, and configuration of the handheld device;
3. Explosion proof Exd Ⅱ BT6/iaCT6: Flammable and explosive working conditions in chemical explosion-proof workshops;
4. On site LCD meter head: Real time digital display of liquid level/differential pressure values on site;
5. High static pressure HP model: with a maximum pressure of 32MPa, specifically designed for high-pressure vessels.
