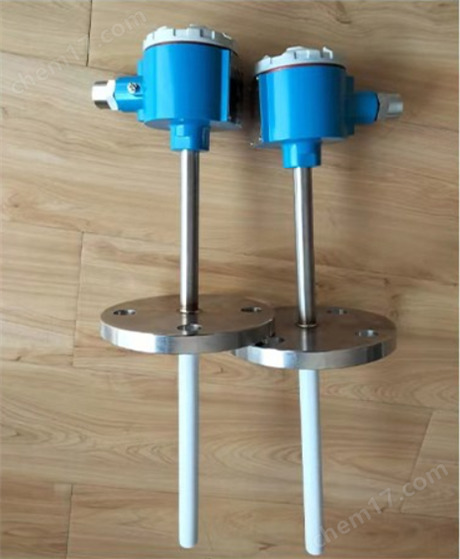

Explosion proof thermistor

Description :

1. Prefabricated explosion-proof thermal resistance WZP - □ 40 (thick sleeve with a diameter of 16, fixed installation)

WZP-240: M20 × 1.5 fixed thread explosion-proof (most commonly used for pipelines)

WZP-340: Explosion proof movable flange, adjustable insertion depth

WZP-440: Fixed flange explosion-proof, pressure vessel, explosion-proof reactor

• Range: -200~450 ℃, casing made of 304/316L stainless steel

2. Armored explosion-proof thermal resistance WZPK - □ 40 (flexible thin rod with a diameter of 3/4/5/6mm)

WZPK-241/341/441， Armored magnesium oxide insulation, resistant to vibration and fast response, with a minimum probe length of 30mm, suitable for temperature measurement of compressor and explosion-proof motor bearings; Can be used for lead out and explosion-proof plug type, with a temperature range of -200 to 500 ℃.

3. Integrated explosion-proof transmission SBWZ-440 (explosion-proof on-site 4-20mA output)

The explosion-proof box is equipped with an isolation and transmission module, powered by 24VDC, with a two-wire system of 4-20mA. The range can be adjusted on site, and the explosion-proof level remains unchanged without the need for compensating wires. Long distance explosion-proof pipelines are preferred; Optional HART smart protocol version.

4. Intrinsic safety explosion-proof WZP/WZPK - □ 40 (ia) Exia Ⅱ CT6

Intrinsically safe and explosion-proof, used with safety barriers, suitable for high explosive IIC gas environments such as hydrogen and acetylene. The instrument circuit has low energy and no ignition source, and is dedicated to fine chemical and hydrogenation equipment.
